P. 1505
75-5

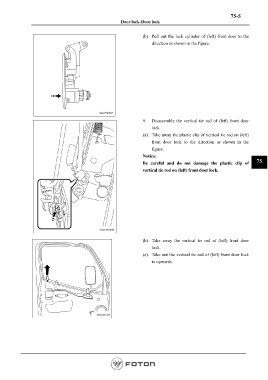

Door lock-Door lock
(b). Pull out the lock cylinder of (left) front door to the
direction as shown in the figure.
9. Disassemble the vertical tie rod of (left) front door
lock
(a). Take away the plastic clip of vertical tie rod on (left)
front door lock to the direction as shown in the
figure.
Notice:
75
Be careful and do not damage the plastic clip of
vertical tie rod on (left) front door lock.
(b). Take away the vertical tie rod of (left) front door
lock.
(c). Take out the vertical tie rod of (left) front door lock
to upwards.
