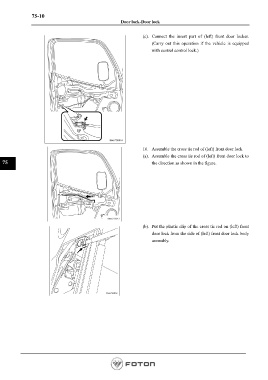

P. 1510
75-10
Door lock-Door lock
(c). Connect the insert part of (left) front door locker.
(Carry out this operation if the vehicle is equipped
with central control lock.)
16. Assemble the cross tie rod of (left) front door lock
(a). Assemble the cross tie rod of (left) front door lock to
75 the direction as shown in the figure.
(b). Put the plastic clip of the cross tie rod on (left) front
door lock from the side of (left) front door lock body
assembly.
