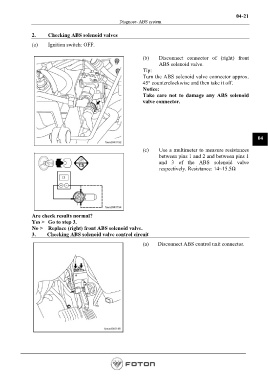

Page 165 - Workshop Manual - Aumark (BJ1051)

04-21
Diagnose- ABS system

2. Checking ABS solenoid valves

(a) Ignition switch: OFF.

(b) Disconnect connector of (right) front
ABS solenoid valve.
Tip:
Turn the ABS solenoid valve connector approx.
45° counterclockwise and then take it off.
Notice:
Take care not to damage any ABS solenoid
valve connector.

04

(c) Use a multimeter to measure resistances
between pins 1 and 2 and between pins 1
and 3 of the ABS solenoid valve
respectively. Resistance: 14~15.5Ω

Are check results normal?
Yes > Go to step 3.
No > Replace (right) front ABS solenoid valve.
3. Checking ABS solenoid valve control circuit

(a) Disconnect ABS control unit connector.
