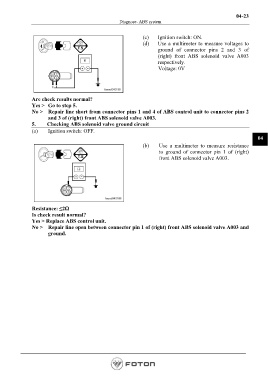

Diagnose- ABS system

(c) Ignition switch: ON.
(d) Use a multimeter to measure voltages to
ground of connector pins 2 and 3 of
(right) front ABS solenoid valve A003
respectively.
Voltage: 0V

Are check results normal?
Yes > Go to step 5.
No > Repair line short from connector pins 1 and 4 of ABS control unit to connector pins 2
and 3 of (right) front ABS solenoid valve A003.
5. Checking ABS solenoid valve ground circuit
(a) Ignition switch: OFF.
04

(b) Use a multimeter to measure resistance
to ground of connector pin 1 of (right)
front ABS solenoid valve A003.

Resistance: ≤2Ω
Is check result normal?
Yes > Replace ABS control unit.
No > Repair line open between connector pin 1 of (right) front ABS solenoid valve A003 and
ground.
