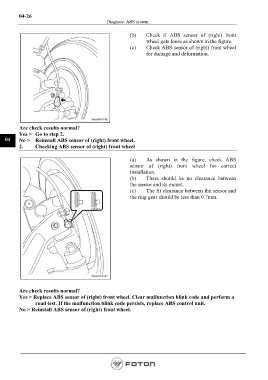

Page 170 - Workshop Manual - Aumark (BJ1051)

04-26
Diagnose- ABS system

(b) Check if ABS sensor of (right) front
wheel gets loose as shown in the figure.
(c) Check ABS sensor of (right) front wheel
for damage and deformation.

Are check results normal?
Yes > Go to step 2.
04 No > Reinstall ABS sensor of (right) front wheel.
2. Checking ABS sensor of (right) front wheel

(a) As shown in the figure, check ABS
sensor of (right) front wheel for correct
installation.
(b) There should be no clearance between
the sensor and its mount.
(c) The fit clearance between the sensor and
the ring gear should be less than 0.7mm.

Are check results normal?
Yes > Replace ABS sensor of (right) front wheel. Clear malfunction blink code and perform a
road test. If the malfunction blink code persists, replace ABS control unit.
No > Reinstall ABS sensor of (right) front wheel.
