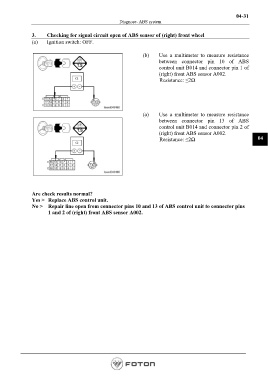

P. 175
04-31
Diagnose- ABS system
3. Checking for signal circuit open of ABS sensor of (right) front wheel
(a) Ignition switch: OFF.
(b) Use a multimeter to measure resistance
between connector pin 10 of ABS
control unit B014 and connector pin 1 of
(right) front ABS sensor A002.
Resistance: ≤2Ω
(a) Use a multimeter to measure resistance
between connector pin 13 of ABS
control unit B014 and connector pin 2 of
(right) front ABS sensor A002.
Resistance: ≤2Ω 04
Are check results normal?
Yes > Replace ABS control unit.
No > Repair line open from connector pins 10 and 13 of ABS control unit to connector pins
1 and 2 of (right) front ABS sensor A002.
