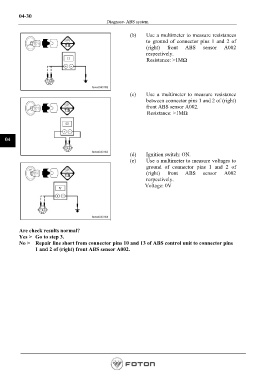

P. 174
04-30
Diagnose- ABS system
(b) Use a multimeter to measure resistances
to ground of connector pins 1 and 2 of
(right) front ABS sensor A002
respectively.
Resistance: >1MΩ
(c) Use a multimeter to measure resistance
between connector pins 1 and 2 of (right)
front ABS sensor A002.
Resistance: >1MΩ
04
(d) Ignition switch: ON.
(e) Use a multimeter to measure voltages to
ground of connector pins 1 and 2 of
(right) front ABS sensor A002
respectively.
Voltage: 0V
Are check results normal?
Yes > Go to step 3.
No > Repair line short from connector pins 10 and 13 of ABS control unit to connector pins
1 and 2 of (right) front ABS sensor A002.
