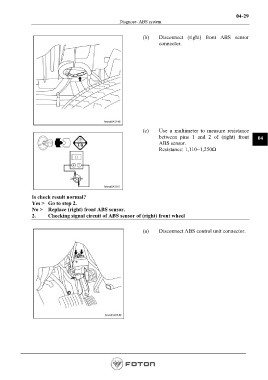

P. 173
04-29
Diagnose- ABS system
(b) Disconnect (right) front ABS sensor
connector.
(c) Use a multimeter to measure resistance
between pins 1 and 2 of (right) front 04
ABS sensor.
Resistance: 1,110~1,250Ω
Is check result normal?
Yes > Go to step 2.
No > Replace (right) front ABS sensor.
2. Checking signal circuit of ABS sensor of (right) front wheel
(a) Disconnect ABS control unit connector.
