04-33
Diagnose- ABS system

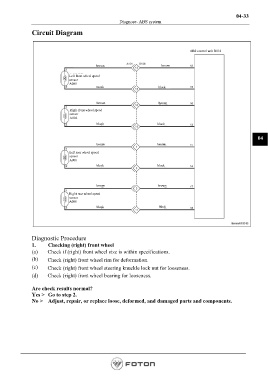

Circuit Diagram

ABS control unit B014

brown brown
Left front wheel speed
sensor
A005
black black

brown brown
Right front wheel speed
sensor
A002
black black

04
brown brown

Left rear wheel speed
sensor
A006
black black

brown brown
Right rear wheel speed
sensor
A008
black black

Diagnostic Procedure
1. Checking (right) front wheel
(a) Check if (right) front wheel size is within specifications.
(b) Check (right) front wheel rim for deformation.
(c) Check (right) front wheel steering knuckle lock nut for looseness.

(d) Check (right) front wheel bearing for looseness.

Are check results normal?
Yes > Go to step 2.
No > Adjust, repair, or replace loose, deformed, and damaged parts and components.
