P. 180

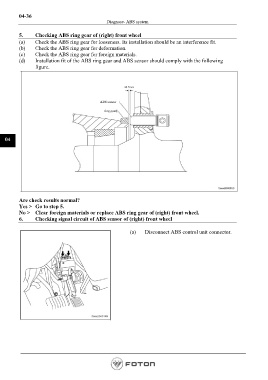

04-36
Diagnose- ABS system
5. Checking ABS ring gear of (right) front wheel
(a) Check the ABS ring gear for looseness. Its installation should be an interference fit.
(b) Check the ABS ring gear for deformation.
(c) Check the ABS ring gear for foreign materials.
(d) Installation fit of the ABS ring gear and ABS sensor should comply with the following
figure.
ABS sensor
ring gear
04
Are check results normal?
Yes > Go to step 5.
No > Clear foreign materials or replace ABS ring gear of (right) front wheel.
6. Checking signal circuit of ABS sensor of (right) front wheel
(a) Disconnect ABS control unit connector.
