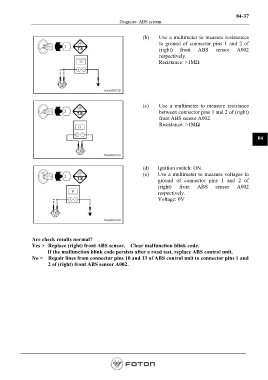

04-37
Diagnose- ABS system

(b) Use a multimeter to measure resistances
to ground of connector pins 1 and 2 of
(right) front ABS sensor A002
respectively.
Resistance: >1MΩ

(c) Use a multimeter to measure resistance
between connector pins 1 and 2 of (right)
front ABS sensor A002.
Resistance: >1MΩ

04

(d) Ignition switch: ON.
(e) Use a multimeter to measure voltages to
ground of connector pins 1 and 2 of
(right) front ABS sensor A002
respectively.
Voltage: 0V

Are check results normal?
Yes > Replace (right) front ABS sensor. Clear malfunction blink code.
If the malfunction blink code persists after a road test, replace ABS control unit.
No > Repair lines from connector pins 10 and 13 of ABS control unit to connector pins 1 and
2 of (right) front ABS sensor A002.
