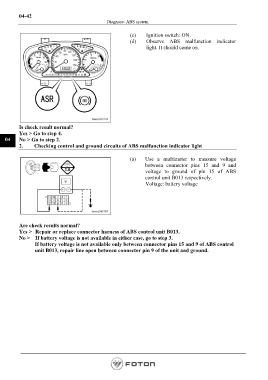

Page 186 - Workshop Manual - Aumark (BJ1051)

04-42
Diagnose- ABS system

(c) Ignition switch: ON.
(d) Observe ABS malfunction indicator
light. It should come on.

Is check result normal?
Yes > Go to step 4.
04 No > Go to step 2.
2. Checking control and ground circuits of ABS malfunction indicator light

(a) Use a multimeter to measure voltage
between connector pins 15 and 9 and
voltage to ground of pin 15 of ABS
control unit B013 respectively.
Voltage: battery voltage

Are check results normal?
Yes > Repair or replace connector harness of ABS control unit B013.
No > If battery voltage is not available in either case, go to step 3.
If battery voltage is not available only between connector pins 15 and 9 of ABS control
unit B013, repair line open between connector pin 9 of the unit and ground.
