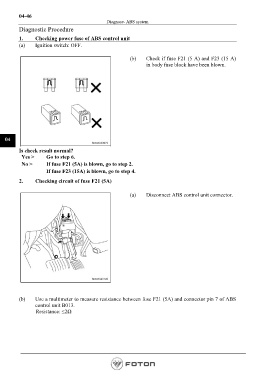

P. 190

04-46
                                                Diagnose- ABS system
          Diagnostic Procedure

          1.     Checking power fuse of ABS control unit
          (a)     Ignition switch: OFF.

                                                           (b)     Check if fuse F21 (5 A) and F23 (15 A)
                                                                  in body fuse block have been blown.


















   04

          Is check result normal?
           Yes >      Go to step 6.
           No >       If fuse F21 (5A) is blown, go to step 2.
                      If fuse F23 (15A) is blown, go to step 4.
          2.     Checking circuit of fuse F21 (5A)

                                                           (a)     Disconnect ABS control unit connector.
























          (b)     Use a multimeter to measure resistance between fuse F21 (5A) and connector pin 7 of ABS
                 control unit B013.
                 Resistance: ≤2Ω
