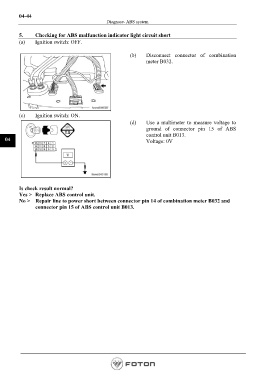

P. 188
04-44
Diagnose- ABS system
5. Checking for ABS malfunction indicator light circuit short
(a) Ignition switch: OFF.
(b) Disconnect connector of combination
meter B032.
(c) Ignition switch: ON.
(d) Use a multimeter to measure voltage to
ground of connector pin 15 of ABS
control unit B013.
04 Voltage: 0V
Is check result normal?
Yes > Replace ABS control unit.
No > Repair line to power short between connector pin 14 of combination meter B032 and
connector pin 15 of ABS control unit B013.
