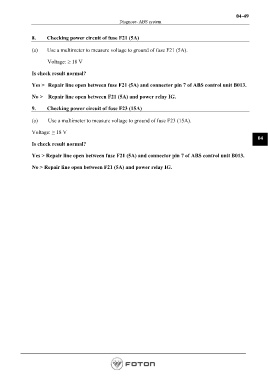

P. 193
04-49
Diagnose- ABS system
8. Checking power circuit of fuse F21 (5A)
(a) Use a multimeter to measure voltage to ground of fuse F21 (5A).
Voltage: ≥ 18 V
Is check result normal?
Yes > Repair line open between fuse F21 (5A) and connector pin 7 of ABS control unit B013.
No > Repair line open between F21 (5A) and power relay IG.
9. Checking power circuit of fuse F23 (15A)
(a) Use a multimeter to measure voltage to ground of fuse F23 (15A).
Voltage: ≥ 18 V
04
Is check result normal?
Yes > Repair line open between fuse F21 (5A) and connector pin 7 of ABS control unit B013.
No > Repair line open between F21 (5A) and power relay IG.
