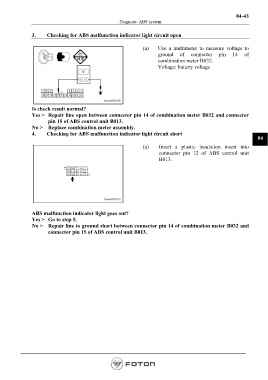

04-43
Diagnose- ABS system
3. Checking for ABS malfunction indicator light circuit open
(a) Use a multimeter to measure voltage to
ground of connector pin 14 of
combination meter B032.
Voltage: battery voltage
Is check result normal?
Yes > Repair line open between connector pin 14 of combination meter B032 and connector
pin 15 of ABS control unit B013.
No > Replace combination meter assembly.
4. Checking for ABS malfunction indicator light circuit short
04
(a) Insert a plastic insulation insert into
connector pin 12 of ABS control unit
B013.
ABS malfunction indicator light goes out?
Yes > Go to step 5.
No > Repair line to ground short between connector pin 14 of combination meter B032 and
connector pin 15 of ABS control unit B013.
