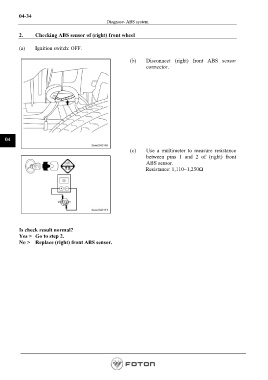

P. 178

04-34
                                                Diagnose- ABS system

          2.     Checking ABS sensor of (right) front wheel

          (a)     Ignition switch: OFF.

                                                           (b)     Disconnect (right) front ABS sensor
                                                                  connector.










   04

                                                           (c)     Use a multimeter to measure resistance
                                                                  between pins 1 and 2 of (right) front
                                                                  ABS sensor.
                                                                  Resistance: 1,110~1,250Ω












          Is check result normal?
          Yes >   Go to step 2.
          No >    Replace (right) front ABS sensor.
