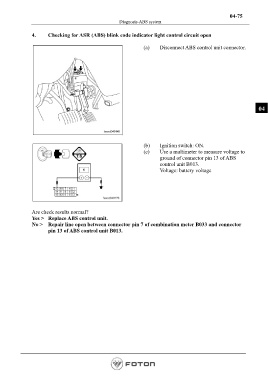

P. 219
04-75
Diagnosis-ABS system
4. Checking for ASR (ABS) blink code indicator light control circuit open
(a) Disconnect ABS control unit connector.
04
(b) Ignition switch: ON.
(c) Use a multimeter to measure voltage to
ground of connector pin 13 of ABS
control unit B013.
Voltage: battery voltage
Are check results normal?
Yes > Replace ABS control unit.
No > Repair line open between connector pin 7 of combination meter B033 and connector
pin 13 of ABS control unit B013.
