P. 214
04-70
Diagnosis-ABS system

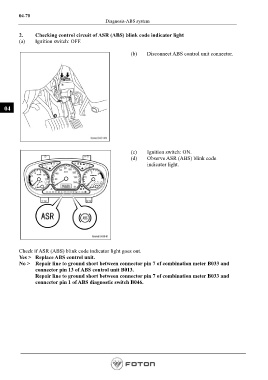

2. Checking control circuit of ASR (ABS) blink code indicator light
(a) Ignition switch: OFF.
(b) Disconnect ABS control unit connector.
04
(c) Ignition switch: ON.
(d) Observe ASR (ABS) blink code
indicator light.
Check if ASR (ABS) blink code indicator light goes out.
Yes > Replace ABS control unit.
No > Repair line to ground short between connector pin 7 of combination meter B033 and
connector pin 13 of ABS control unit B013.
Repair line to ground short between connector pin 7 of combination meter B033 and
connector pin 1 of ABS diagnostic switch B046.
