P. 213

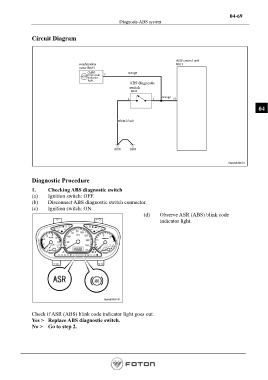

04-69
Diagnosis-ABS system
Circuit Diagram
ABS control unit
combination B013
meter B033
(ABS) orange
blink code
indicator
light.
ABS diagnostic
switch
orange
04
white-black
Diagnostic Procedure
1. Checking ABS diagnostic switch
(a) Ignition switch: OFF.
(b) Disconnect ABS diagnostic switch connector.
(c) Ignition switch: ON.
(d) Observe ASR (ABS) blink code
indicator light.
Check if ASR (ABS) blink code indicator light goes out.
Yes > Replace ABS diagnostic switch.
No > Go to step 2.
