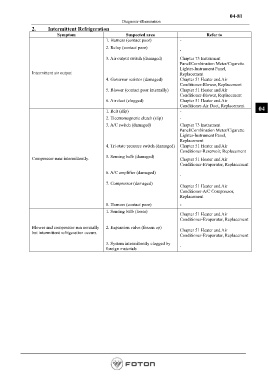

Page 225 - Workshop Manual - Aumark (BJ1051)
P. 225
04-81
Diagnosis-illlumination
2. Intermittent Refrigeration
Symptom Suspected area Refer to
1. Harness (contact poor) -
2. Relay (contact poor)
-
3. Air output switch (damaged) Chapter 73 Instrument
Panel/Combination Meter/Cigarette
Lighter-Instrument Panel,
Intermittent air output Replacement
4. Governor resistor (damaged) Chapter 51 Heater and Air
Conditioner-Blower, Replacement
5. Blower (contact poor internally) Chapter 51 Heater and Air
Conditioner-Blower, Replacement
6. Air duct (clogged) Chapter 51 Heater and Air
Conditioner-Air Duct, Replacement
1. Belt (slip) - 04
2. Electromagnetic clutch (slip) -
3. A/C switch (damaged) Chapter 73 Instrument
Panel/Combination Meter/Cigarette
Lighter-Instrument Panel,
Replacement
4. Tri-state pressure switch (damaged) Chapter 51 Heater and Air
Conditioner-Reservoir, Replacement
Compressor runs intermittently. 5. Sensing bulb (damaged) Chapter 51 Heater and Air
Conditioner-Evaporator, Replacement
6. A/C amplifier (damaged)
-
7. Compressor (damaged)
Chapter 51 Heater and Air
Conditioner-A/C Compressor,
Replacement
8. Harness (contact poor) -
1. Sensing bulb (loose)
Chapter 51 Heater and Air
Conditioner-Evaporator, Replacement
Blower and compressor run normally 2. Expansion valve (frozen up) Chapter 51 Heater and Air
but intermittent refrigeration occurs.
Conditioner-Evaporator, Replacement
3. System intermittently clogged by
foreign materials -
