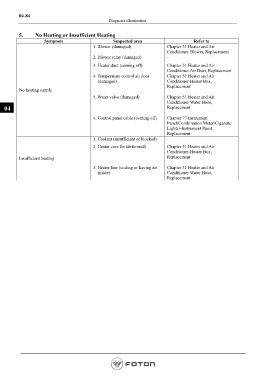

Page 228 - Workshop Manual - Aumark (BJ1051)

04-84
Diagnosis-illuminaiton

5. No Heating or Insufficient Heating
Symptom Suspected area Refer to
1. Blower (damaged) Chapter 51 Heater and Air
Conditioner-Blower, Replacement
2. Blower relay (damaged) -
3. Heater duct (coming off) Chapter 51 Heater and Air
Conditioner-Air Duct, Replacement
4. Temperature control air door Chapter 51 Heater and Air
(damaged) Conditioner-Heater Box,
Replacement
No heating supply
5. Water valve (damaged) Chapter 51 Heater and Air
Conditioner-Water Hose,
04 Replacement

6. Control panel cable (coming off) Chapter 73 Instrument
Panel/Combination Meter/Cigarette
Lighter-Instrument Panel,
Replacement
1. Coolant (insufficient or blocked) -
2. Heater core fin (deformed) Chapter 51 Heater and Air
Conditioner-Heater Box,
Insufficient heating Replacement

3. Heater line (scaling or having air Chapter 51 Heater and Air
inside) Conditioner-Water Hose,
Replacement

Page 228
