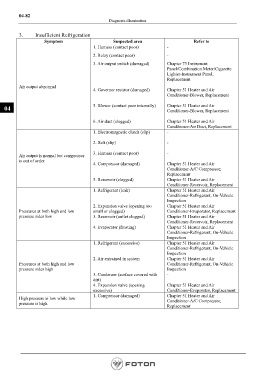

P. 226
04-82
Diagnosis-illuminaiton
3. Insufficient Refrigeration
Symptom Suspected area Refer to
1. Harness (contact poor) -
2. Relay (contact poor) -
3. Air output switch (damaged) Chapter 73 Instrument
Panel/Combination Meter/Cigarette
Lighter-Instrument Panel,
Replacement
Air output abnormal
4. Governor resistor (damaged) Chapter 51 Heater and Air
Conditioner-Blower, Replacement
04 5. Blower (contact poor internally) Chapter 51 Heater and Air
Conditioner-Blower, Replacement
6. Air duct (clogged) Chapter 51 Heater and Air
Conditioner-Air Duct, Replacement
1. Electromagnetic clutch (slip) -
2. Belt (slip) -
3. Harness (contact poor) -
Air output is normal but compressor
is out of order.
4. Compressor (damaged) Chapter 51 Heater and Air
Conditioner-A/C Compressor,
Replacement
5. Reservoir (clogged) Chapter 51 Heater and Air
Conditioner-Reservoir, Replacement
1. Refrigerant (leak) Chapter 51 Heater and Air
Conditioner-Refrigerant, On-Vehicle
Inspection
2. Expansion valve (opening too Chapter 51 Heater and Air
Pressures at both high and low small or clogged) Conditioner-Evaporator, Replacement
pressure sides low 3. Reservoir (outlet clogged) Chapter 51 Heater and Air
Conditioner-Reservoir, Replacement
4. Evaporator (frosting) Chapter 51 Heater and Air
Conditioner-Refrigerant, On-Vehicle
Inspection
1. Refrigerant (excessive) Chapter 51 Heater and Air
Conditioner-Refrigerant, On-Vehicle
Inspection
2. Air entrained in system Chapter 51 Heater and Air
Pressures at both high and low Conditioner-Refrigerant, On-Vehicle
pressure sides high Inspection
3. Condenser (surface covered with -
dirt)
4. Expansion valve (opening Chapter 51 Heater and Air
excessive) Conditioner-Evaporator, Replacement
1. Compressor (damaged) Chapter 51 Heater and Air
High pressure is low while low Conditioner-A/C Compressor,
pressure is high.
Replacement
