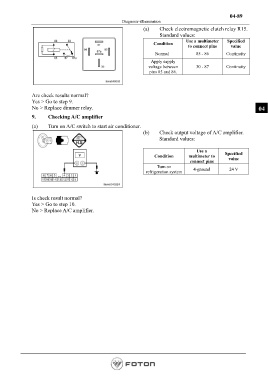

P. 233
04-89
Diagnosis-illlumination
(a) Check electromagnetic clutch relay R15.
Standard values:
Use a multimeter Specified
Condition
to connect pins value
Normal 85 - 86 Continuity
Apply supply
voltage between 30 - 87 Continuity
pins 85 and 86.
Are check results normal?
Yes > Go to step 9.
No > Replace dimmer relay. 04
9. Checking A/C amplifier
(a) Turn on A/C switch to start air conditioner.
(b) Check output voltage of A/C amplifier.
Standard values:
Use a Specified
Condition multimeter to value
connect pins
Turn on 4-ground 24 V
refrigeration system
Is check result normal?
Yes > Go to step 10.
No > Replace A/C amplifier.
