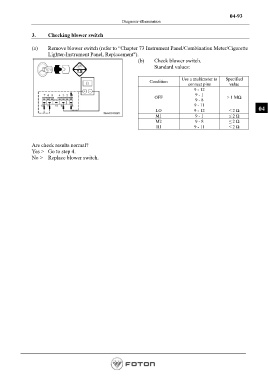

P. 237
04-93
Diagnosis-illlumination
3. Checking blower switch
(a) Remove blower switch (refer to “Chapter 73 Instrument Panel/Combination Meter/Cigarette
Lighter-Instrument Panel, Replacement").
(b) Check blower switch.
Standard values:
Use a multimeter to Specified
Condition
connect pins value
9 - 12
9 - 1
OFF > 1 MΩ
9 - 8
9 - 11
LO 9 - 12 ≤ 2 Ω 04
M1 9 - 1 ≤ 2 Ω
M2 9 - 8 ≤ 2 Ω
HI 9 - 11 ≤ 2 Ω
Are check results normal?
Yes > Go to step 4.
No > Replace blower switch.
