Diagnosis-illlumination
Compressor Runs Intermittently

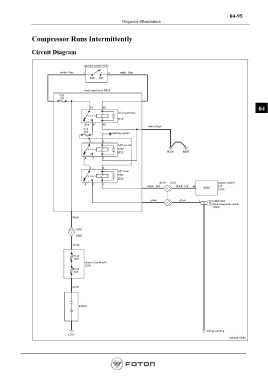

Circuit Diagram
Ignition switch·B026
white- blue white- blue
body fuse block B050
04
IG power relay
white-black
starting system
A/C cut-off
relay
A/C main
relay
engine control
black –red black –red unit
green green compressor
electromagnetic clutch
white
chassis fuse block 1
white
battery
self-grounding
