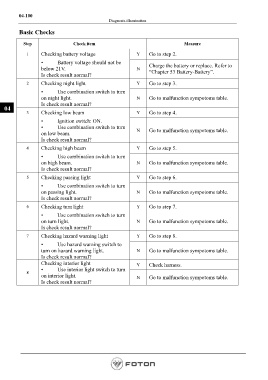

Page 244 - Workshop Manual - Aumark (BJ1051)

04-100
Diagnosis-illuminaiton

Basic Checks

Step Check item Measure

1 Checking battery voltage Y Go to step 2.
• Battery voltage should not be
below 21V. N Charge the battery or replace. Refer to
Is check result normal? “Chapter 53 Battery-Battery”.
2 Checking night light Y Go to step 3.
• Use combination switch to turn
on night light. N Go to malfunction sympotoms table.
Is check result normal?
04
3 Checking low beam Y Go to step 4.

• Ignition switch: ON.
• Use combination switch to turn
N Go to malfunction sympotoms table.
on low beam.
Is check result normal?
4 Checking high beam Y Go to step 5.
• Use combination switch to turn
on high beam. N Go to malfunction sympotoms table.
Is check result normal?
5 Checking passing light Y Go to step 6.

• Use combination switch to turn
on passing light. N Go to malfunction sympotoms table.
Is check result normal?
6 Checking turn light Y Go to step 7.

• Use combination switch to turn
on turn light. N Go to malfunction sympotoms table.
Is check result normal?

7 Checking hazard warning light Y Go to step 8.
• Use hazard warning switch to
turn on hazard warning light. N Go to malfunction sympotoms table.
Is check result normal?
Checking interior light Y Check harness.
• Use interior light switch to turn
8
on interior light. N Go to malfunction sympotoms table.
Is check result normal?
