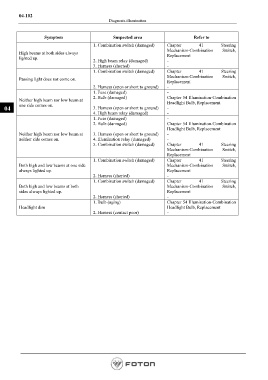

04-102
Diagnosis-illuminaiton

Symptom Suspected area Refer to
1. Combination switch (damaged) Chapter 41 Steering
Mechanism-Combination Switch,
High beams at both sides always Replacement
lighted up.
2. High beam relay (damaged) -
3. Harness (shorted) -
1. Combination switch (damaged) Chapter 41 Steering
Mechanism-Combination Switch,
Passing light does not come on.
Replacement
2. Harness (open or short to ground) -
1. Fuse (damaged) -
2. Bulb (damaged) Chapter 54 Illumination-Combination
Neither high beam nor low beam at Headlight Bulb, Replacement
04 one side comes on. 3. Harness (open or short to ground) -
4. High beam relay (damaged) -
1. Fuse (damaged) -
2. Bulb (damaged) Chapter 54 Illumination-Combination
Headlight Bulb, Replacement
Neither high beam nor low beam at 3. Harness (open or short to ground) -
neither side comes on. 4. Illumination relay (damaged) -
5. Combination switch (damaged) Chapter 41 Steering
Mechanism-Combination Switch,
Replacement
1. Combination switch (damaged) Chapter 41 Steering
Both high and low beams at one side Mechanism-Combination Switch,
always lighted up. Replacement
2. Harness (shorted) -
1. Combination switch (damaged) Chapter 41 Steering
Both high and low beams at both Mechanism-Combination Switch,
sides always lighted up. Replacement
2. Harness (shorted) -
1. Bulb (aging) Chapter 54 Illumination-Combination
Headlight dim Headlight Bulb, Replacement
2. Harness (contact poor) -
