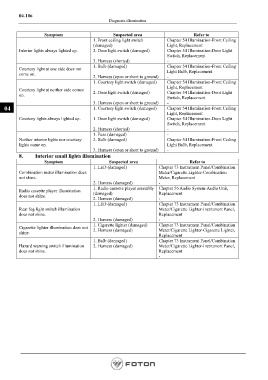

Page 250 - Workshop Manual - Aumark (BJ1051)

04-106
Diagnosis-illuminaiton

Symptom Suspected area Refer to
1. Front ceiling light switch Chapter 54 Illumination-Front Ceiling
(damaged) Light, Replacement
Interior lights always lighted up. 2. Door light switch (damaged) Chapter 54 Illumination-Door Light
Switch, Replacement
3. Harness (shorted) -
1. Bulb (damaged) Chapter 54 Illumination-Front Ceiling
Courtesy light at one side does not
come on. Light Bulb, Replacement
2. Harness (open or short to ground) -
1. Courtesy light switch (damaged) Chapter 54 Illumination-Front Ceiling
Light, Replacement
Courtesy light at neither side comes 2. Door light switch (damaged) Chapter 54 Illumination-Door Light
on.
Switch, Replacement
3. Harness (open or short to ground) -
04 1. Courtesy light switch (damaged) Chapter 54 Illumination-Front Ceiling
Light, Replacement
Courtesy lights always lighted up. 1. Door light switch (damaged) Chapter 54 Illumination-Door Light
Switch, Replacement
2. Harness (shorted) -
1. Fuse (damaged) -
Neither interior lights nor courtesy 2. Bulb (damaged) Chapter 54 Illumination-Front Ceiling
lights come on. Light Bulb, Replacement
3. Harness (open or short to ground) -
8. Interior small lights illumination
Symptom Suspected area Refer to
1. LED (damaged) Chapter 73 Instrument Panel/Combination
Combination meter illumination does Meter/Cigarette Lighter-Combination
not shine. Meter, Replacement
2. Harness (damaged) -
1. Radio cassette player assembly Chapter 56 Audio System-Audio Unit,
Radio cassette player illumination
does not shine. (damaged) Replacement
2. Harness (damaged) -
1. LED (damaged) Chapter 73 Instrument Panel/Combination
Rear fog light switch illumination Meter/Cigarette Lighter-Instrument Panel,
does not shine. Replacement
2. Harness (damaged) -
1. Cigarette lighter (damaged) Chapter 73 Instrument Panel/Combination
Cigarette lighter illumination does not 2. Harness (damaged) Meter/Cigarette Lighter-Cigarette Lighter,
shine.
Replacement
1. Bulb (damaged) Chapter 73 Instrument Panel/Combination
Hazard warning switch illumination 2. Harness (damaged) Meter/Cigarette Lighter-Instrument Panel,
does not shine. Replacement
-
