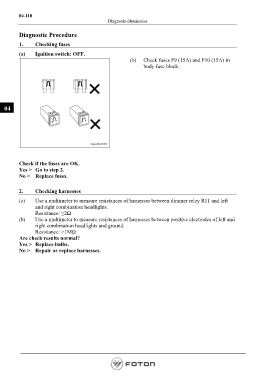

P. 254

04-110
                                                 Diagnosis-illumination

          Diagnostic Procedure
          1.     Checking fuses

          (a)     Ignition switch: OFF.
                                                           (b)    Check fuses F9 (15A) and F10 (15A) in
                                                                 body fuse block.









   04












          Check if the fuses are OK.
          Yes >   Go to step 2.
          No >    Replace fuses.

          2.     Checking harnesses

          (a)     Use a multimeter to measure resistances of harnesses between dimmer relay R11 and left
                 and right combination headlights.
                 Resistance: ≤2Ω
          (b)     Use a multimeter to measure resistances of harnesses between positive electrodes of left and
                 right combination headlights and ground.
                 Resistance: >1MΩ
          Are check results normal?
          Yes >   Replace bulbs.
          No >    Repair or replace harnesses.
