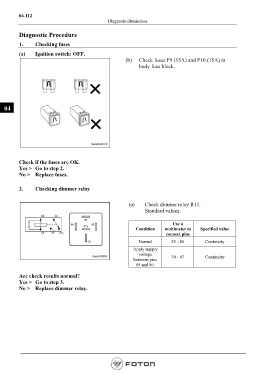

04-112
Diagnosis-illumination

Diagnostic Procedure
1. Checking fuses

(a) Ignition switch: OFF.
(b) Check fuses F9 (15A) and F10 (15A) in
body fuse block.

04

Check if the fuses are OK.
Yes > Go to step 2.
No > Replace fuses.

2. Checking dimmer relay

(a) Check dimmer relay R11.
Standard values:

Use a
Condition multimeter to Specified value
connect pins
Normal 85 - 86 Continuity
Apply supply
voltage
between pins 30 - 87 Continuity
85 and 86.

Are check results normal?
Yes > Go to step 3.
No > Replace dimmer relay.
