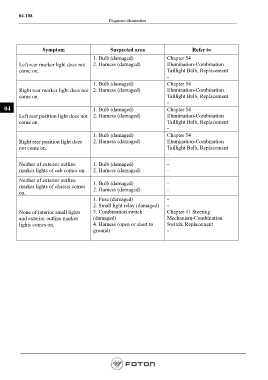

P. 252
04-108
Diagnosis-illuminaiton
Symptom Suspected area Refer to
1. Bulb (damaged) Chapter 54
Left rear marker light does not 2. Harness (damaged) Illumination-Combination
come on. Taillight Bulb, Replacement
-
1. Bulb (damaged) Chapter 54
Right rear marker light does not 2. Harness (damaged) Illumination-Combination
come on. Taillight Bulb, Replacement
-
04 1. Bulb (damaged) Chapter 54
Left rear position light does not 2. Harness (damaged) Illumination-Combination
come on. Taillight Bulb, Replacement
-
1. Bulb (damaged) Chapter 54
Right rear position light does 2. Harness (damaged) Illumination-Combination
not come on. Taillight Bulb, Replacement
-
Neither of exterior outline 1. Bulb (damaged) -
marker lights of cab comes on. 2. Harness (damaged) -
Neither of exterior outline 1. Bulb (damaged) -
marker lights of chassis comes 2. Harness (damaged) -
on.
1. Fuse (damaged) -
2. Small light relay (damaged) -
None of interior small lights 3. Combination switch Chapter 41 Steering
and exterior outline marker (damaged) Mechanism-Combination
lights comes on. 4. Harness (open or short to Switch, Replacement
ground) -
