Page 255 - Workshop Manual - Aumark (BJ1051)
P. 255

04-111
                                                       Diagnosis- illumination
               Low Beam At Neither Side Comes On

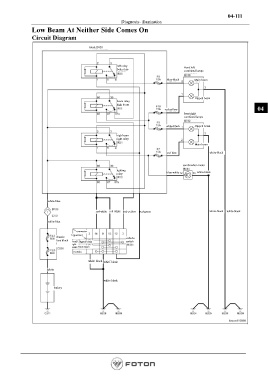

               Circuit Diagram

                                         block B050



                                                     left relay                    front left
                                                     body fuse                     combined lamps

                                                                           blue-black  Main beam



                                                                                       Dipped beam
                                                     beam relay
                                                     high beam
                                                                          red-yellow                               04
                                                                                   front right
                                                                                   combined lamps
                                                                           white-black  Dipped beam

                                                     high beam
                                                     right relay
                                                                                       Main beam
                                                                           red-blue           white-black

                                                                                  combination meter
                                                     lighting                            white-black
                                                     relay                 blue-white





                      white-blue

                                            red-white  red-white red-yellow  red-green        white-black  white-black

                      white-blue

                                   connector
                                 h (position)
                          chassis                        cubicle
                          fuse block   headl Dipped beam   switch
                          1      ight
                                 switc Main beam
                                  overtake
                                        white-black   white-black
                      white

                                               white-black
                         battery
