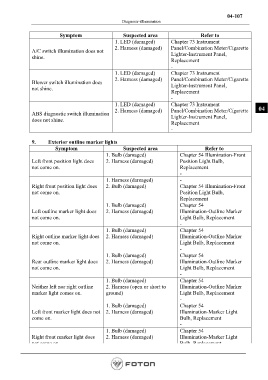

04-107
Diagnosis-illlumination

Symptom Suspected area Refer to
1. LED (damaged) Chapter 73 Instrument
2. Harness (damaged) Panel/Combination Meter/Cigarette
A/C switch illumination does not Lighter-Instrument Panel,
shine.
Replacement
-
1. LED (damaged) Chapter 73 Instrument
2. Harness (damaged) Panel/Combination Meter/Cigarette
Blower switch illumination does Lighter-Instrument Panel,
not shine.
Replacement
-
1. LED (damaged) Chapter 73 Instrument
2. Harness (damaged) Panel/Combination Meter/Cigarette 04
ABS diagnostic switch illumination Lighter-Instrument Panel,
does not shine.
Replacement
-

9. Exterior outline marker lights
Symptom Suspected area Refer to
1. Bulb (damaged) Chapter 54 Illumination-Front
Left front position light does 2. Harness (damaged) Position Light Bulb,
not come on. Replacement
-
1. Harness (damaged) -
Right front position light does 2. Bulb (damaged) Chapter 54 Illumination-Front
not come on. Position Light Bulb,
Replacement
1. Bulb (damaged) Chapter 54
Left outline marker light does 2. Harness (damaged) Illumination-Outline Marker
not come on. Light Bulb, Replacement
-
1. Bulb (damaged) Chapter 54
Right outline marker light does 2. Harness (damaged) Illumination-Outline Marker
not come on. Light Bulb, Replacement
-
1. Bulb (damaged) Chapter 54
Rear outline marker light does 2. Harness (damaged) Illumination-Outline Marker
not come on. Light Bulb, Replacement
-
1. Bulb (damaged) Chapter 54
Neither left nor right outline 2. Harness (open or short to Illumination-Outline Marker
marker light comes on. ground) Light Bulb, Replacement
-
1. Bulb (damaged) Chapter 54
Left front marker light does not 2. Harness (damaged) Illumination-Marker Light
come on. Bulb, Replacement
-
1. Bulb (damaged) Chapter 54
Right front marker light does 2. Harness (damaged) Illumination-Marker Light
not come on. Bulb, Replacement
-
