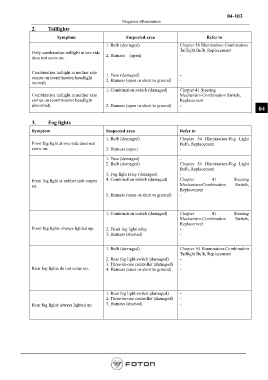

04-103
Diagnosis-illlumination
2. Taillights

Symptom Suspected area Refer to
1. Bulb (damaged) Chapter 54 Illumination-Combination
Taillight Bulb, Replacement
Only combination taillight at one side
does not come on. 2. Harness (open) -

Combination taillight at neither side
comes on (combination headlight 1. Fuse (damaged) -
-
2. Harness (open or short to ground)
normal).
1. Combination switch (damaged) Chapter 41 Steering
Combination taillight at neither side Mechanism-Combination Switch,
comes on (combination headlight Replacement
abnormal). 2. Harness (open or short to ground) -
04

3. Fog lights

Symptom Suspected area Refer to
1. Bulb (damaged) Chapter 54 Illumination-Fog Light
Front fog light at one side does not Bulb, Replacement
come on. 2. Harness (open) -

1. Fuse (damaged) -
2. Bulb (damaged) Chapter 54 Illumination-Fog Light
Bulb, Replacement
3. Fog light relay (damaged) -
Front fog light at neither side comes 4. Combination switch (damaged) Chapter 41 Steering
on. Mechanism-Combination Switch,
Replacement
5. Harness (open or short to ground) -

1. Combination switch (damaged) Chapter 41 Steering
Mechanism-Combination Switch,
Replacement
Front fog lights always lighted up. 2. Front fog light relay -
3. Harness (shorted) -

1. Bulb (damaged) Chapter 54 Illumination-Combination
Taillight Bulb, Replacement
2. Rear fog light switch (damaged) -
3. Three-in-one controller (damaged) -
Rear fog lights do not come on. 4. Harness (open or short to ground) -

1. Rear fog light switch (damaged) -
2. Three-in-one controller (damaged) -
Rear fog lights always lighted up. 3. Harness (shorted) -
