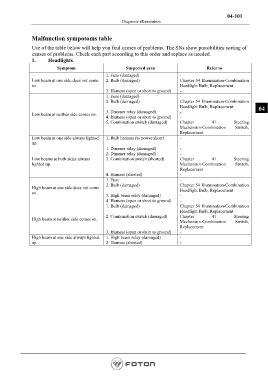

04-101
Diagnosis-illlumination

Malfunction sympotoms table
Use of the table below will help you find causes of problems. The SNs show possibilities sorting of
causes of problems. Check each part according to this order and replace as needed.
1. Headlights
Symptom Suspected area Refer to
1. Fuse (damaged) -
Low beam at one side does not come 2. Bulb (damaged) Chapter 54 Illumination-Combination
on. Headlight Bulb, Replacement
3. Harness (open or short to ground) -
1. Fuse (damaged) -
2. Bulb (damaged) Chapter 54 Illumination-Combination
Headlight Bulb, Replacement 04
3. Dimmer relay (damaged) -
Low beam at neither side comes on.
4. Harness (open or short to ground) -
5. Combination switch (damaged) Chapter 41 Steering
Mechanism-Combination Switch,
Replacement
Low beam at one side always lighted 1. Bulb harness (to power short) -
up.
1. Dimmer relay (damaged) -
2. Dimmer relay (damaged) -
Low beams at both sides always 3. Combination switch (shorted) Chapter 41 Steering
lighted up. Mechanism-Combination Switch,
Replacement
4. Harness (shorted) -
1. Fuse -
2. Bulb (damaged) Chapter 54 Illumination-Combination
High beam at one side does not come Headlight Bulb, Replacement
on.
3. High beam relay (damaged) -
4. Harness (open or short to ground) -
1. Bulb (damaged) Chapter 54 Illumination-Combination
Headlight Bulb, Replacement
2. Combination switch (damaged) Chapter 41 Steering
High beam at neither side comes on.
Mechanism-Combination Switch,
Replacement
3. Harness (open or short to ground) -
High beam at one side always lighted 1. High beam relay (damaged) -
up. 2. Harness (shorted) -
