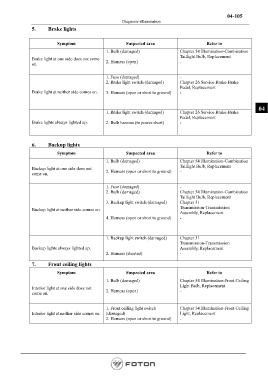

Page 249 - Workshop Manual - Aumark (BJ1051)

04-105
Diagnosis-illlumination
5. Brake lights

Symptom Suspected area Refer to

1. Bulb (damaged) Chapter 54 Illumination-Combination
Taillight Bulb, Replacement
Brake light at one side does not come
on. 2. Harness (open) -

1. Fuse (damaged) -
2. Brake light switch (damaged) Chapter 26 Service Brake-Brake
Pedal, Replacement
Brake light at neither side comes on. 3. Harness (open or short to ground) -

04
1. Brake light switch (damaged) Chapter 26 Service Brake-Brake
Pedal, Replacement
Brake lights always lighted up. 2. Bulb harness (to power short) -

6. Backup lights

Symptom Suspected area Refer to
1. Bulb (damaged) Chapter 54 Illumination-Combination
Taillight Bulb, Replacement
Backup light at one side does not
come on. 2. Harness (open or short to ground) -

1. Fuse (damaged) -
2. Bulb (damaged) Chapter 54 Illumination-Combination
Taillight Bulb, Replacement
3. Backup light switch (damaged) Chapter 31
Transmission-Transmission
Backup light at neither side comes on.
Assembly, Replacement
4. Harness (open or short to ground) -

1. Backup light switch (damaged) Chapter 31
Transmission-Transmission
Backup lights always lighted up. Assembly, Replacement
2. Harness (shorted) -
7. Front ceiling lights

Symptom Suspected area Refer to
1. Bulb (damaged) Chapter 54 Illumination-Front Ceiling
Light Bulb, Replacement
Interior light at one side does not
come on. 2. Harness (open) -

1. Front ceiling light switch Chapter 54 Illumination-Front Ceiling
Interior light at neither side comes on. (damaged) Light, Replacement
2. Harness (open or short to ground) -
