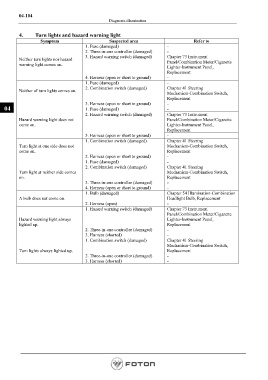

Page 248 - Workshop Manual - Aumark (BJ1051)

04-104
Diagnosis-illuminaiton

4. Turn lights and hazard warning light
Symptom Suspected area Refer to
1. Fuse (damaged) -
2. Three-in-one controller (damaged) -
3. Hazard warning switch (damaged) Chapter 73 Instrument
Neither turn lights nor hazard
warning light comes on. Panel/Combination Meter/Cigarette
Lighter-Instrument Panel,
Replacement
4. Harness (open or short to ground) -
1. Fuse (damaged) -
2. Combination switch (damaged) Chapter 41 Steering
Neither of turn lights comes on. Mechanism-Combination Switch,

Replacement
3. Harness (open or short to ground) -
04 1. Fuse (damaged) -
2. Hazard warning switch (damaged) Chapter 73 Instrument
Hazard warning light does not Panel/Combination Meter/Cigarette
come on. Lighter-Instrument Panel,
Replacement
3. Harness (open or short to ground) -
1. Combination switch (damaged) Chapter 41 Steering
Turn light at one side does not Mechanism-Combination Switch,
come on. Replacement
2. Harness (open or short to ground) -
1. Fuse (damaged) -
2. Combination switch (damaged) Chapter 41 Steering
Turn light at neither side comes Mechanism-Combination Switch,
on. Replacement
3. Three-in-one controller (damaged) -
4. Harness (open or short to ground) -
1. Bulb (damaged) Chapter 54 Illumination-Combination
A bulb does not come on. Headlight Bulb, Replacement
2. Harness (open) -
1. Hazard warning switch (damaged) Chapter 73 Instrument
Panel/Combination Meter/Cigarette
Hazard warning light always Lighter-Instrument Panel,
lighted up. Replacement
2. Three-in-one controller (damaged) -
3. Harness (shorted) -
1. Combination switch (damaged) Chapter 41 Steering
Mechanism-Combination Switch,
Turn lights always lighted up. Replacement
2. Three-in-one controller (damaged) -
3. Harness (shorted) -
