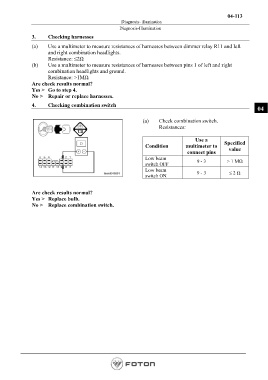

04-113
                                                       Diagnosis- illumination
                                                      Diagnosis-Illumination
               3.     Checking harnesses

               (a)     Use a multimeter to measure resistances of harnesses between dimmer relay R11 and left
                      and right combination headlights.
                      Resistance: ≤2Ω
               (b)     Use a multimeter to measure resistances of harnesses between pins 1 of left and right
                      combination headlights and ground.
                      Resistance: >1MΩ
               Are check results normal?
               Yes >   Go to step 4.
               No >    Repair or replace harnesses.
               4.     Checking combination switch
                                                                                                                   04

                                                                (a)     Check combination switch.
                                                                        Resistances:

                                                                                        Use a
                                                                  Condition        multimeter to     Specified
                                                                                                       value
                                                                                    connect pins
                                                                  Low beam
                                                                  switch OFF             9 - 3        > 1 MΩ
                                                                  Low beam
                                                                   switch ON             9 - 3         ≤ 2 Ω


               Are check results normal?
               Yes >   Replace bulb.
               No >    Replace combination switch.
