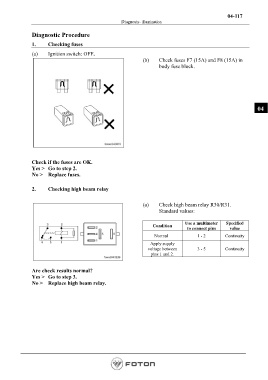

Page 261 - Workshop Manual - Aumark (BJ1051)

04-117
Diagnosis- illumination

Diagnostic Procedure
1. Checking fuses

(a) Ignition switch: OFF.
(b) Check fuses F7 (15A) and F8 (15A) in
body fuse block.

04

Check if the fuses are OK.
Yes > Go to step 2.
No > Replace fuses.

2. Checking high beam relay

(a) Check high beam relay R30/R31.
Standard values:

Use a multimeter Specified
Condition
to connect pins value
Normal 1 - 2 Continuity
Apply supply
voltage between 3 - 5 Continuity
pins 1 and 2.

Are check results normal?
Yes > Go to step 3.
No > Replace high beam relay.
