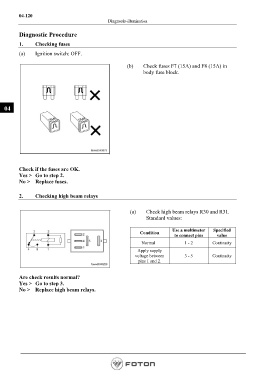

04-120
Diagnosis-illumination

Diagnostic Procedure
1. Checking fuses

(a) Ignition switch: OFF.

(b) Check fuses F7 (15A) and F8 (15A) in
body fuse block.

04

Check if the fuses are OK.
Yes > Go to step 2.
No > Replace fuses.

2. Checking high beam relays

(a) Check high beam relays R30 and R31.
Standard values:

Use a multimeter Specified
Condition
to connect pins value
Normal 1 - 2 Continuity

Apply supply
voltage between 3 - 5 Continuity
pins 1 and 2.

Are check results normal?
Yes > Go to step 3.
No > Replace high beam relays.
