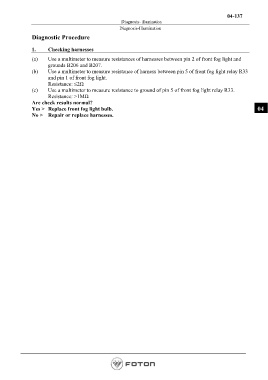

P. 281

04-137
                                                       Diagnosis- illumination
                                                      Diagnosis-Illumination
               Diagnostic Procedure


               1.     Checking harnesses

               (a)     Use a multimeter to measure resistances of harnesses between pin 2 of front fog light and
                      grounds B206 and B207.
               (b)     Use a multimeter to measure resistance of harness between pin 5 of front fog light relay R33
                      and pin 1 of front fog light.
                      Resistance: ≤2Ω
               (c)     Use a multimeter to measure resistance to ground of pin 5 of front fog light relay R33.
                      Resistance: >1MΩ
               Are check results normal?
               Yes >   Replace front fog light bulb.                                                               04
               No >    Repair or replace harnesses.
