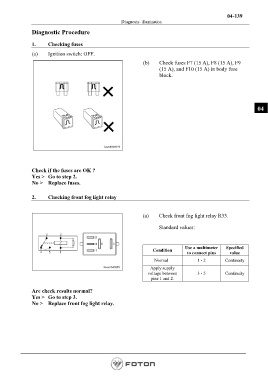

04-139
Diagnosis- illumination

Diagnostic Procedure

1. Checking fuses

(a) Ignition switch: OFF.
(b) Check fuses F7 (15 A), F8 (15 A), F9
(15 A), and F10 (15 A) in body fuse
block.

04

Check if the fuses are OK ?
Yes > Go to step 2.
No > Replace fuses.

2. Checking front fog light relay

(a) Check front fog light relay R33.

Standard values:

Use a multimeter Specified
Condition
to connect pins value
Normal 1 - 2 Continuity

Apply supply
voltage between 3 - 5 Continuity
pins 1 and 2.

Are check results normal?
Yes > Go to step 3.
No > Replace front fog light relay.
