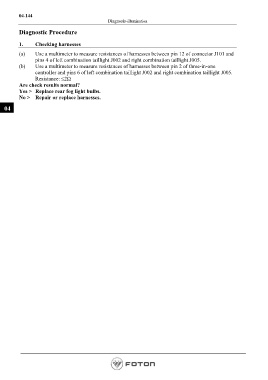

04-144
                                                 Diagnosis-illumination

          Diagnostic Procedure

          1.     Checking harnesses

          (a)    Use a multimeter to measure resistances of harnesses between pin 12 of connector J101 and
                 pins 4 of left combination taillight J002 and right combination taillight J005.
          (b)    Use a multimeter to measure resistances of harnesses between pin 2 of three-in-one
                 controller and pins 6 of left combination taillight J002 and right combination taillight J005.
                 Resistance: ≤2Ω
          Are check results normal?
          Yes >   Replace rear fog light bulbs.
          No >    Repair or replace harnesses.

   04
