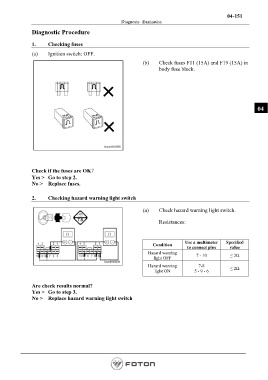

P. 295

04-151
                                                       Diagnosis- illumination

               Diagnostic Procedure

               1.     Checking fuses

               (a)    Ignition switch: OFF.
                                                                (b)     Check fuses F11 (15A) and F19 (15A) in
                                                                        body fuse block.









                                                                                                                   04













               Check if the fuses are OK？
               Yes >   Go to step 2.
               No >    Replace fuses.

               2.     Checking hazard warning light switch

                                                                (a)     Check hazard warning light switch.


                                                                      Resistances:


                                                                                   Use a multimeter   Specified
                                                                     Condition
                                                                                    to connect pins    value
                                                                   Hazard warning       7 - 10         ≤ 2Ω
                                                                     light OFF
                                                                   Hazard warning        7-8
                                                                      light ON         5 - 9 - 6       ≤ 2Ω


               Are check results normal?
               Yes >  Go to step 3.
               No >  Replace hazard warning light switch
