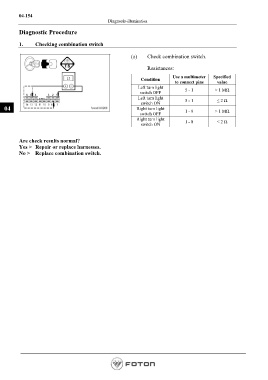

04-154
                                                 Diagnosis-illumination

          Diagnostic Procedure

          1.     Checking combination switch


                                                           (a)    Check combination switch.

                                                                 Resistances:

                                                                              Use a multimeter   Specified
                                                                Condition
                                                                               to connect pins   value
                                                              Left turn light
                                                               switch OFF          5 - 1        > 1 MΩ
                                                              Left turn light      5 - 1         ≤ 2 Ω
                                                                switch ON
   04                                                         Right turn light
                                                               switch OFF          1 - 8        > 1 MΩ
                                                              Right turn light     1 - 8         ≤ 2 Ω
                                                                switch ON


          Are check results normal?
          Yes >   Repair or replace harnesses.
          No >    Replace combination switch.
