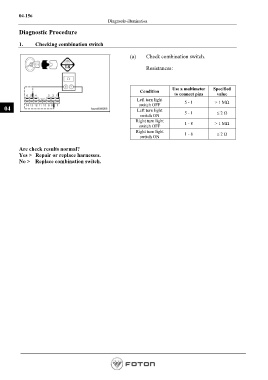

P. 300

04-156
                                                 Diagnosis-illumination

          Diagnostic Procedure

          1.     Checking combination switch


                                                           (a)    Check combination switch.

                                                                Resistances:



                                                                              Use a multimeter   Specified
                                                               Condition
                                                                              to connect pins    value
                                                              Left turn light      5 - 1        > 1 MΩ
                                                               switch OFF
   04                                                         Left turn light
                                                               switch ON           5 - 1         ≤ 2 Ω
                                                             Right turn light      1 - 8        > 1 MΩ
                                                               switch OFF
                                                             Right turn light      1 - 8         ≤ 2 Ω
                                                               switch ON

          Are check results normal?
          Yes >   Repair or replace harnesses.
          No >    Replace combination switch.
