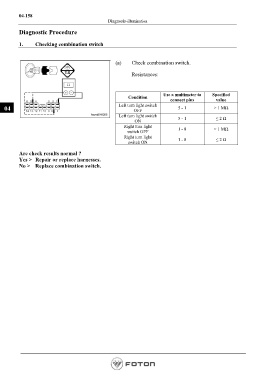

P. 302

04-158
                                                 Diagnosis-illumination

          Diagnostic Procedure

          1.     Checking combination switch


                                                    (a)     Check combination switch.


                                                          Resistances:



                                                                          Use a multimeter to   Specified
                                                          Condition
                                                                             connect pins        value
                                                      Left turn light switch
   04                                                       OFF                 5 - 1           > 1 MΩ
                                                      Left turn light switch
                                                             ON                 5 - 1            ≤ 2 Ω
                                                        Right turn light        1 - 8           > 1 MΩ
                                                          switch OFF
                                                        Right turn light        1 - 8            ≤ 2 Ω
                                                          switch ON

          Are check results normal ?
          Yes >   Repair or replace harnesses.
          No >    Replace combination switch.
