04-161
Diagnosis- illumination

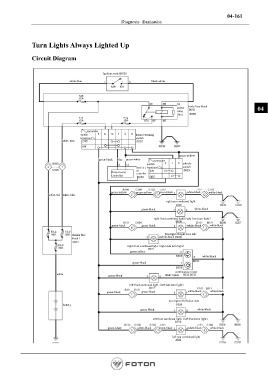

Turn Lights Always Lighted Up

Circuit Diagram

Ignition switchB026
white-blue black-white

IG
power body fuse block 04
relay B050

connector
switch hazard warning
(position) switch
white-blue OFF
ON

green-yellow
green-black blue green-white connector
switch cubicle
three-in-o (position) switch
ne left
three-in-one controller
controller right

green-yellow green-yellow green-black white-black white-black
white-red white-blue
right rear combined light

green-black white-black
right front combined light（right front turn light）
green-black green-black white-black white-black

chassis fuse turn light of right door side
block 1 white-black
right front combined light（right side turn light）
green-yellow
white-black
green-black

white combination meter
green-black white-black
left front combined light（left side turn light）
green-black green-black white-black white-black

turn light of left door side
battery
green-black white-black

left front combined light（left front turn light）
green-black green-black green-black white-black white-black

left rear combined light
