04-267
Diagnosis-audio system

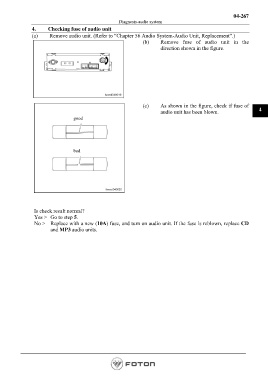

4. Checking fuse of audio unit
(a) Remove audio unit. (Refer to “Chapter 56 Audio System-Audio Unit, Replacement”.)
(b) Remove fuse of audio unit in the
direction shown in the figure.
(c) As shown in the figure, check if fuse of
audio unit has been blown. 4
good
bad
Is check result normal?
Yes > Go to step 5.
No > Replace with a new (10A) fuse, and turn on audio unit. If the fuse is reblown, replace CD
and MP3 audio units.
